This is a Minor Repair Kit with contains mostly OEM Quality Sherwood Parts.
Please note, the newer Sherwood pumps have a press on mechanical seal. If you have a retaining ring and a washer holding on your mechanical seal then the seal in this kit will not fit. You will be able to see this when you remove the impeller.
Kit Part number: Replaces 23972 or 23972-SHW
Fits the following pumps: P1727(A, FB, FB-01, FB-02, X), P1730(A, 01,02, F-01,, F-02, X), P1731(01, F-02), P1733X, P1733F-01, P1716(A, B-01, B-02, X), P1719(X, 01, F-02), P1722(A, B-01, B-02, X)

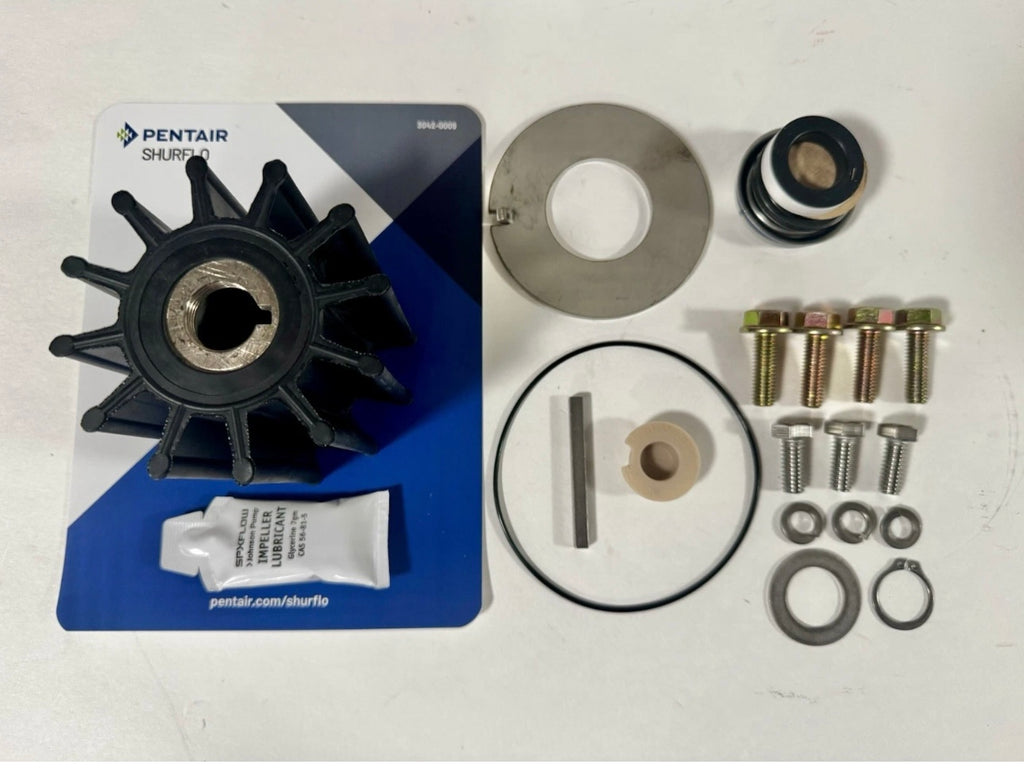

Includes
- 1 OEM Impeller with Cap, Key, o-ring and Impeller Lube
- 1 OEM Mechanical Seal and Seat assembly
- 1 OEM Flange oil lip seal
- 1 OEM Inner Wear Plate/Pin assembly
- 1 OEM Flange adapter gasket
- 1 Stainless retaining ring
- 4 grade 5 flange bolts
- 3 stainless end cover bolts and lock washers
- 1 OEM stainless washer for the mechanical seal
Impeller Specs:
Width: 2-7/8" (73mm)
Diameter: 3-5/16" (84mm)
Shaft: 20mm
Drive: 3/16" key
Material: Neoprene
Silhouette: 12 blades
