This is a Major Repair Kit with contains an OEM Quality Sherwood Impeller.
Please note, the newer Sherwood pumps have a press on mechanical seal and this kit does not have the newer press on mechanical seal. If you have a retaining ring and a washer holding on your mechanical seal then the seal in this kit will fit, indicating you have the older style seal and shaft assembly. You will be able to see this when you remove the impeller.
Kit Part number: Replaces 23974 or 23974-SHW
its the following pumps: P1727(A, FB, FB-01, FB-02, X), P1730(A, 01,02, F-01,, F-02, X), P1731(01, F-02), P1733X, P1733F-01, P1716(A, B-01, B-02, X), P1719(X, 01, F-02), P1722(A, B-01, B-02, X)

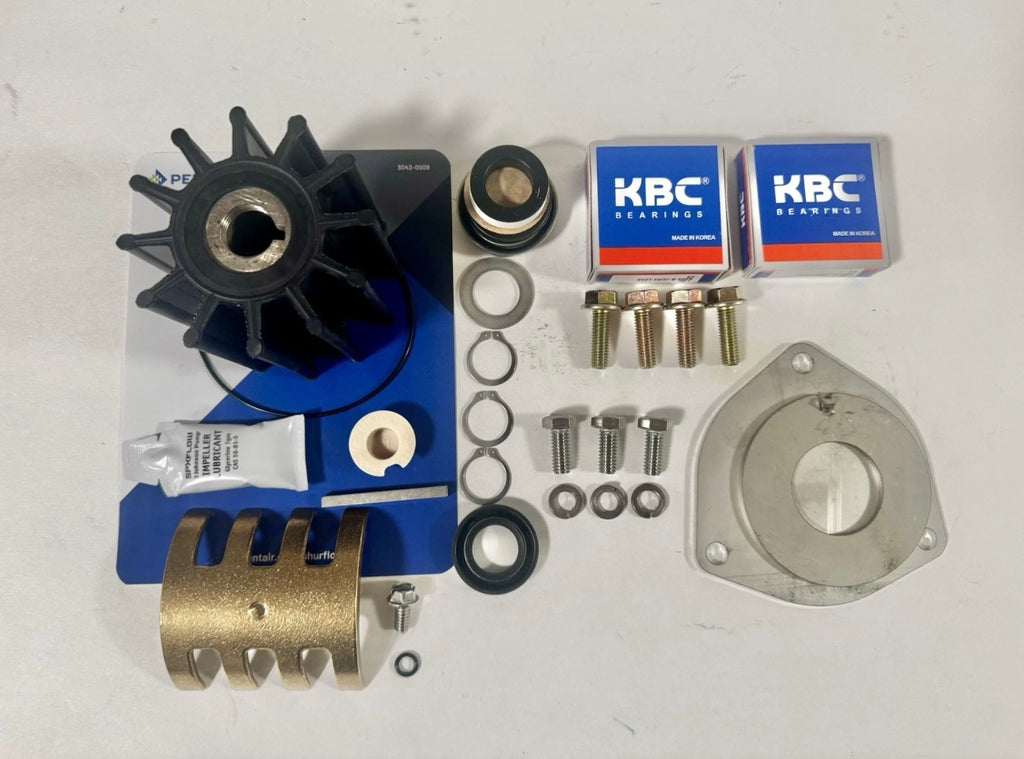

Includes
- 1 OEM Impeller with Cap, Key, O-ring and Impeller Lube
- 1 Camshaft with screw and O-ring
- 1 Mechanical Seal and Seat assembly 15955S
- 2 Genuine Brand Name Bearings (KBC, SKF, PEER or other brand name Bearings with proper seals for marine applications)
- 1 Flange oil lip seal
- 1 Inner Wear Plate/Pin assembly
- 1 End Cover Plate
- Flange adapter gasket
- 3 Stainless retaining rings
- 4 grade 5 flange bolts
- 3 stainless end cover bolts and lock washers
- 1 stainless washer for the mechanical seal
Impeller Specs:
Width: 2-7/8" (73mm)
Diameter: 3-5/16" (84mm)
Shaft: 20mm
Drive: 3/16" key
Material: Neoprene
Silhouette: 12 blades
